Foldable Container
FUUNZO Foldable Cabin
Foldable Container is 95% finished in factory and can be erected within 10 minutes with lifting equipment. It is convenient and economic both in transportation and assembly.
Size and Weight
Foldable Container House size is 5.8mx 2.4mx 0.48m when it is folded; and 5.8mx 2.4m x 2.8m when it is erected.
The weight of standard container is approx. 1200kg.
Solid Steel Frame
Steel Profiles with normal paint finishes.
Top/Bottom Frame - RSH60mmx120mmx2mm
Bottom Purlin – RSH48mmx80mmx2mm
Top Purlin – RSH40mmx60mmx2mm, RSH30mmx50mmx2mm

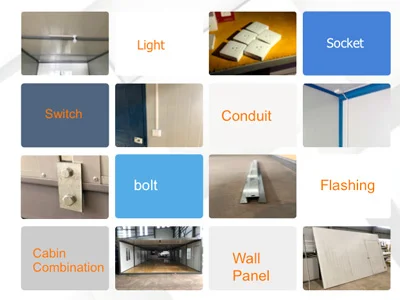

Wall, Roof and Other Fittings
8 Nos. of hoisting bolt at corners
20mmx1200mm with mosquito net
50mm Rockwool color steel wall panels
Steel door 1.0mWx2.0mH
Alum. window 920mmx1200mm with mosquito net

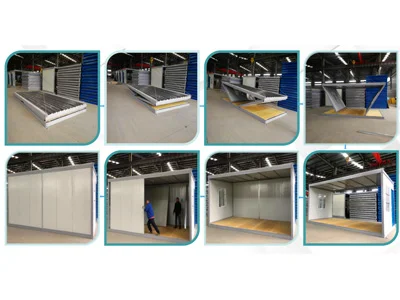

Assembly
Folding container assembly can be completed in 10 minutes time
Lift up from top
Shot-end wall turn down to vertical direction
Slot column end to the hole in the bottom frame
Fixed using BoltsInsert 4 pcs wall panel on the long walls
Install flashing
Sea Transport
9 sets of 2.4mx5.8m foldable container houses can be load into one 40ft HC shipping container.

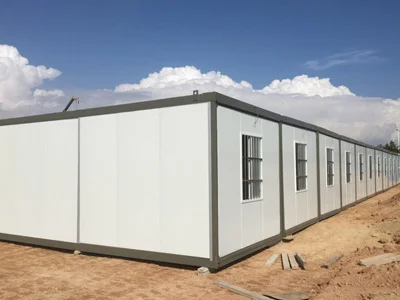

Stacking and Combination

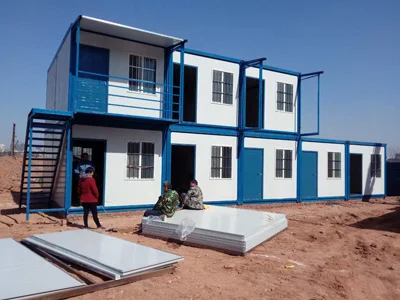

Foldable cabin can be jointed from long side and can be stacked up to 2-floor building.
