FUUNZO Quick Assembly Cabin

To meet the overseas market requirements on 3-meter wide container house, FUUNZO developed Quick Assembly Cabin, which connection between corner cast and top/bottom beam are 100% connected by bolts. Comparing to our standard Flat Packed Container House, Quick Assembly Cabin can save more transportation cost even though it needs 40% more time for assembly at the destination.
If you doubt the efficiency of modular home assembly, please visit https://youtu.be/cyDUkHW1A8o.

Size and Weight

The most popular size of our modular cabins is 20ftx 10ft (6mx3m) for overseas market.
Of course, it is possible to make 6mx2.7m or 6mx2.4m when quantity reaches 30 units.
The weight of the standard container is approx. 1500kg.



Solid Steel Frame

The steel profiles are galvanized before powder coated. The thickness of beams and columns is more than 3mm. That guarantees the product lifespan is more than 20 years against bad natural conditions.

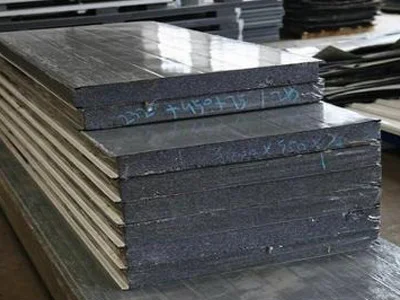

Wall and Insulation

The wall is made from pre-painted color steel sandwich panel. Wall panels are in same modular size and can be switched each other easily. The thickness of wall can be 50mm, 75mm, 100mm or 150mm.
The insulation for wall, roof and floor (optional) can be Glass wool, Rock Wool, Polyurethane or Polystyrene.


Window and Door

The windows and door are prefixed in wall panels, which minimized the works on site. Window grill and blinds can be provided as optional items.

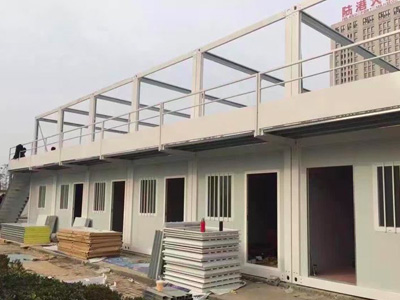

Quick Assembly and Move-in Condition

Electrical System has been pre-installed inside the top-frame and wall panel.
Before leaving our factory, the metal ceiling and PVC flooring have been prefabricated into top/bottom frame.
It takes only 12 man-hours to finish the cabin assembly to achieve move-in condition.



Frame and Wall Panel can be supplied either in the same color (White) or a special color if order quantity is big.
We can also offer a range of alternative external cladding options, including Timber, Plastic Timber, PVC Siding or Brick Effect Fiber-cement Board if preferred.

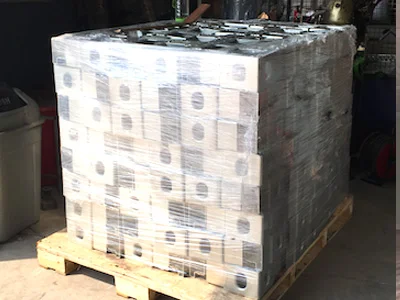

Sea Transport

15 sets of 3mx6m container houses can be load into one 40ft HC shipping container that saves certain amount of transportation cost.


Like LEGO, Quick Assembly Container can be combined horizontally from two directions. Wall panel between two cabins can be removed to have big open space. And also internal partition can be erected wherever you want to form small rooms.
Most of time, the Basic Module is 3mx6m standard Quick Assembly Container.

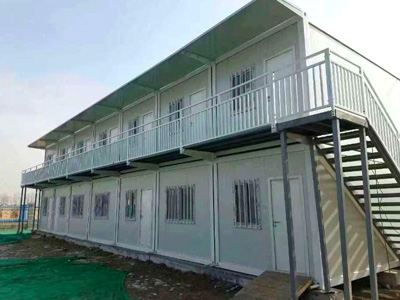

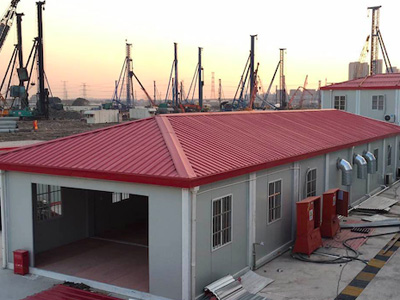

Other Project Photos
